JUNHE®QUDR0180 Multi-Tank Fully Automatic Cleaning Machine

JUNHE®QUDR0180 Multi-Tank Fully Automatic Cleaning Machine
JUNHE®QUDR0180 Multi-Tank Fully Automatic Cleaning Machine JUNHE®QUDR0180 Multi-Tank Fully Automatic Cleaning Machine

Großes Bild :  JUNHE®QUDR0180 Multi-Tank Fully Automatic Cleaning Machine

Produktdetails:
Herkunftsort: China
Markenname: JUNHE
Zertifizierung: ISO 9001 TS16949
Modellnummer: QUDR0180
Zahlung und Versand AGB:
Min Bestellmenge: 1 SATZ
Preis: verhandelbar
Lieferzeit: 2-3 Monate
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 1 Satz 3 Monate
Kontakt

JUNHE®QUDR0180 Multi-Tank Fully Automatic Cleaning Machine

Beschreibung
Gesamtleistung der Ausrüstung: 260 kW Maximale Nutzlast: 180kg
Reinigungsgeschwindigkeit: 0,5 U/s Reinigungstemperatur: 50 ± 10 °C
Trocknungsrotationsgeschwindigkeit (max.): 280 r/min Platzbedarf: 9,5 m * 9,5 m
Hervorheben:

multi-tank automatic cleaning machine

,

fully automatic metal coating cleaner

,

industrial tank cleaning equipment

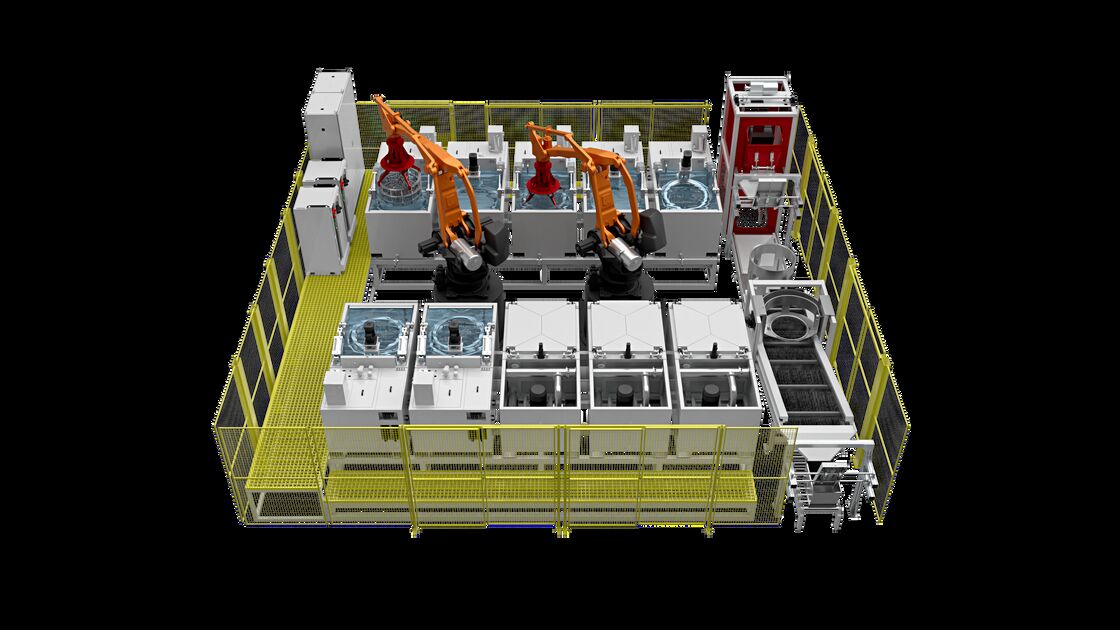

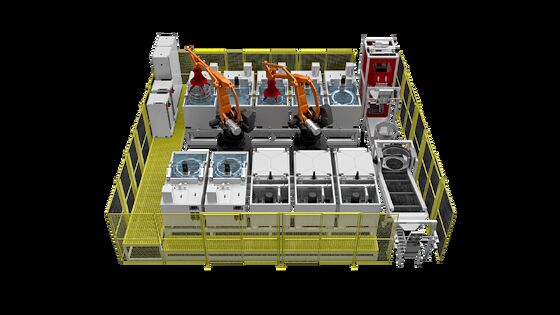

JUNHE®QUDR0180 Multi-Tank Fully Automatic Cleaning Machine features high production capacity, low energy consumption, supports multi-tank switching, and achieves full-process automation, enabling efficient and flexible cleaning.



Total Equipment Power 260kw maximum payload 180kg
Cleaning Rotation Speed 0.5r/s Cleaning Temperature 50±10℃
Drying Rotation Speed(max) 280r/min Floor Space Requirement 9.5m*9.5m
Equipment Capacity(max) 20JPH(workpiece basket) Feeding Method Manual or AGV

1. High Production Capacity and Strongly Adaptive Loading Capacity

The production line capacity reaches 20 JPH (frames), with a maximum loading capacity of 180 kg per frame. It balances efficient processing and single large-volume transportation needs, meeting the requirements of large-scale production.

2. Low-Energy Consumption Operation

With a maximum power of 260 kW, it reduces energy costs while ensuring cleaning performance, conforming to the concept of green production.

3. Flexible and Versatile Operation Modes

It supports free switching between two modes: manual loading/unloading and AGV intelligent loading/unloading. This adapts to different production scenarios (such as small-batch multi-variety production or large-scale continuous production) and improves production flexibility.

4. Strong Adaptability to Flexible Production

The production line adopts a modular design, allowing quick configuration adjustment through flexible combination. It supports switching among 8-tank, 10-tank, and 12-tank multi-process modes. There is no need for frequent equipment replacement to meet the cleaning needs of complex components and different types of workpieces. It perfectly matches small-batch multi-variety and rapid iteration production scenarios, significantly enhancing the response capability to changes in market demand.

5. Full-Process Automation and Precise Control

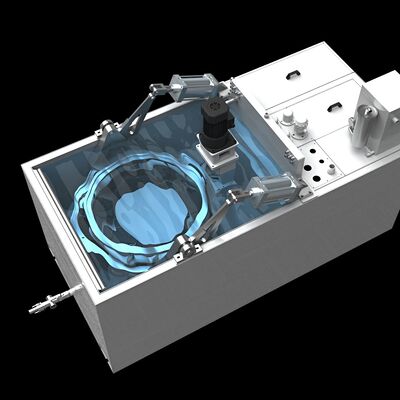

The entire process is automatically executed, from AGV feeding → flipping feeding → robot grabbing to each cleaning tank (for fine operations such as degreasing, water washing, passivation, etc.) → drying/cooling (efficient processing by spin-drying motor + heating component + fan) → robot unloading. Each step's parameters are precisely optimized to ensure stable and reliable cleaning results.

6. Data-Driven Production Support

Data from all production links is traceable. Through real-time data monitoring and analysis, the efficiency is continuously optimized, providing a scientific basis for production management and quality improvement.
